Samsung BCS / PBX Models_______________________

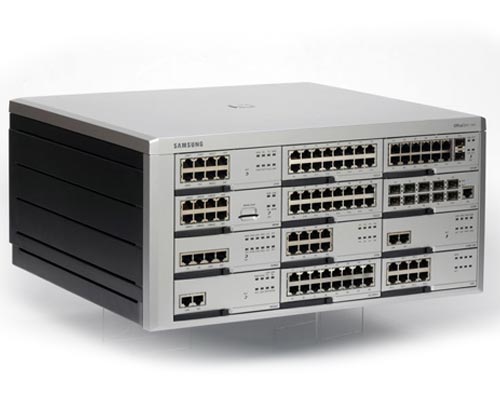

:: OFFICE SERV 7400 ::

OFFICE SERV 7400OfficeServ 7000 series provide customer with various opportunities as complete full line-up of IP convergence system, from 25 to 500 users. OfficeServ 7000 series provide not only system expandability in combination with each other, but also compatibility among system interface boards.

FEATURE
Competitiveness for the future
OfficeServ 7400 is the ideal solution for the future and the present office because it can simultaneously support traditional voice communication, VoIP(Voice over IP), IP-based data communication and wireless solutions through Wireless LAN.

Advanced data networking
QoS with ensured stability is the top priority of the present enterprise communication in company with increasing voice and data traffic. OfficeServ 7400 provides enhanced communication to handle increasing voice and data traffic of IP phones in Small and Medium Business as supporting gigabit Ethernet and layer 2/3 LAN switching.

Mandatory factor of enterprise communication
The importance of security is essential and obvious in enterprise communication. OfficeServ 7400 provides 1 interface module to be integrated with functions of Firewall, VPN, and IDS and applies to security policy by steps against the exterior intrusions not to approve.

Secure mobile communication, WLAN
OfficeServ WLAN liberates you form the confines of your office and provides you with significant cost efficiency with its ability to remove unnecessary cabling and maintenance through the qualified voice and data service of OfficeServ WLAN. With its support for the SMT-W5100 WLAN phone and SMT-R2000 Dualband WLAN AP, OfficeServ 7400 provides full voice-data convergence not only for fixed network connections but also on Corporate WLAN.

Various terminals and differential points
OfficeServ 7400 has the function of fax and can make an emergency call(911) in the case of electric power’s failure, which can be used only on traditional system. Also, OfficeServ 7400 can use many kinds of terminals (analog phones, digital phones, IP phones, IP video phones, IP softphones on PC/PDA).

Value added application for enterprise
OfficeServ 7400 provides many kinds of application for user’s convenience. OfficeServ Call, News, EasySet, DataView, ACD, Operator.

IP UMS
Samsung OfficeServ supports IP UMS that provides you unified messaging service of telephone, IP Phone, e-mail, voice mail, and FAX. You are able to access to your communication devices through Samsung UMS whenever and wherever you want because Samsung UMS is Web based sophisticated solution.



SPECIFICATION

MODEL OFFICE SERV 7400
Maximum Capacity
1 Rack : Max.80 analog trunk ports, Max.160 station ports, Max.176 LAN ports, Max.480 IP station ports(Max.192 WLAN ports)
2 Rack : Max.168 analog trunk ports, Max.336 station ports, Max.352 LAN ports, Max.480 IP station ports(Max.192 WLAN ports)
3 Rack : Max.256 analog trunk ports, Max.512 station ports, Max.528 LAN ports, Max.480 IP station ports(Max.192 WLAN ports)
Trunk Digital (TEPRI2 : 60ch, TEPRI : 30ch) Analog (8TRK)
Station Digital (16DLI, 16DLI2, 8DLI)
Analog (16SLI, 16SLI2, 8SLI, 16MWSLI)
Hybrid (8HYB, 8HYB2)
Data
GWIM : Gigabit WAN Interface Module
GWIMT : Gigabit WAN Interface Module supporting TX
GSIM : Managed L3 Gigabit Switch Interface Module, 10 Gigabit ports
GSIMT : Managed L3 Gigabit Switch Interface Module supporting TX
GPLIM : Managed L2 Gigabit Switch Module with PoE, 2 Gigabit ports,12 Fast Ethernet ports
GPLIMT : Managed L2 Switch Module with PoE supporting TX
LIM, LIM (PoE) : Fast Ethernet Switch module
WLM : Wireless LAN Switch Module, 4ports, Layer L2/L3 Intra/Intersubnet Roaming
Voice Application
MGI64 : 64ch Media Gateway Interface module
MGI16 : 16ch Media Gateway Interface module
quote
top
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

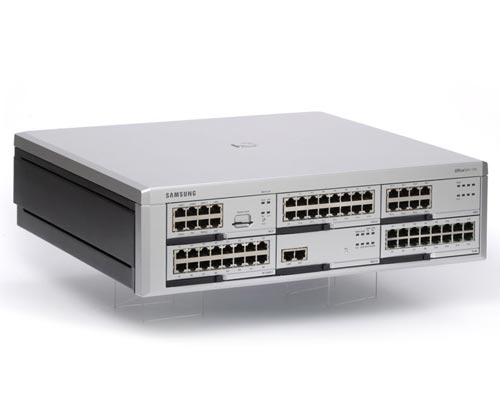

:: OFFICE SERV 7200 ::

OFFICE SERV 7200The next generation of IP platform is the OfficeServ 7200, providing IP based wired and wireless solution for voice and data communication. OfficeServ is the ideal solution for the future and the present office because it can simultaneously support both traditional voice communication, voice over IP, IP based data communication, and wireless solutions through Wireless LAN.

FEATURE
Integrated communication environment
The OfficeServ 7200 makes voice calls and sends/receives data by using the LAN/WAN modules. The user can use the integrated wire/wireless platform (phones, PCs, servers, mobile phones, or peripherals) to make communications easily.

IP based feature server
The OfficeServ 7200 uses an IP-based feature server to provide an IP solution, which integrates the functions of mail server, Session Initiation Protocol (SIP) server, and Voice over IP Unified Messaging Service (VoIP UMS).

Mandatory factor of enterprise communication
The importance of security is essential and obvious in enterprise communication. OfficeServ 7400 provides 1 interface module to be integrated with functions of Firewall, VPN, and IDS and applies to security policy by steps against the exterior intrusions not to approve.

Higher Quality IP Phone
The OfficeServ 7200 ensures the Quality of Service (QoS) of the voice calls depending on the priorities and grouping of data and voice packets. - Layer2 QoS: Priority Processing(802.1p), VLAN(802.1q) - Layer3 QoS: Class Based Queuing(CBQ), RTP Priority .Queuing, or the on demand management of the bandwidth Wide Area Network(WAN).

WAN/LAN Functions
The WAN and LAN interface modules are installed in the OfficeServ 7200; thus data can be sent/received via the interface of the 10/100 base T Ethernet in both the Intranet and the Intranet without any data equipment.

Wireless LAN, Mobility in your office
OfficeServ WLAN liberates you from the confines of your office and provides you with significant cost efficiencies because the qualified voice and data service of OfficeServ WLAN removes needless cabling and maintenance. With its support for the WIP-5000M WLAN phone, OfficeServ provides full voice-data convergence not only for fixed network connections but also on Corporate Wireless LANs.

IP UMS
Samsung OfficeServ supports IP UMS that provides you unified messaging service of telephone, IP Phone, e-mail, voice mail, and FAX. You are able to access to your communication devices through Samsung UMS whenever and wherever you want because Samsung UMS is Web based sophisticated solution.

Test-To Speech (TTS) Response
The OfficeServ 7200 converts text messages such as e-mails to voice messages and allows the users to listen to the messages through phones. Also, it recognizes the voices and responds to them.

Enhanced application
The OfficeServ 7200 offers enhanced applications such as OfficeServ News, EasySet, Internet Call Center, PC Console R-NMS, Internal board-type voice mail solution, Integrated facsimile server, and digital integrated recording systems.


SPECIFICATION
MODEL OFFICE SERV 7200
Maximum Capacity
1 Rack : Max.132 voice users, Max.80 LAN ports, Max.20 xDSL ports, Max.120 WLAN Phones
2 Rack : Max.228 voice users, Max.160 LAN ports, Max.40 xDSL ports, Max.120 WLAN Phones
Trunk Digital (TEPRI , TEPRIa: 30ch, 4BRI : 8ch) Analog (8TRK)
Station Digital (16DLI, 16DLI2, 8DLI)
Analog (16SLI, 16SLI2, 8SLI, 16MWSLI)
Hybrid (8HYB, 8COMBO)
Data
WIM : Fast Ethernet WAN/LAN Interface Module 10/100 Base-T 3ports, 10Base-T 1port, V.35 serial 1 port
LIM, PLIM (PoE) : L2 10/100 Base-T Ethernet 16 ports
WLM : Wireless LAN Switch Module, 4ports, Layer L2/L3 Intra/Inter subnet Roaming
4DSL : Long Distance Ethernet 4 ports, Max.1.2Km Up/Down Link - 5Mbps
Voice Application
WIM : Fast Ethernet WAN/LAN Interface Module 10/100 Base-T 3ports, 10Base-T 1port, V.35 serial 1 port
LIM, PLIM (PoE) : L2 10/100 Base-T Ethernet 16 ports
WLM : Wireless LAN Switch Module, 4ports, Layer L2/L3 Intra/Inter subnet Roaming
4DSL : Long Distance Ethernet 4 ports, Max.1.2Km Up/Down Link - 5Mbps
CPU MPC855T, 50MHz
AC Input
AC : 110V / 220V 60Hz
DC : +5V, -5V, -48V
SIze
1 Rack : 440(W) x 123.8(H) x 410(D)mm
2 Rack : 440(W) x 247.6(H) x 410(D)mm
